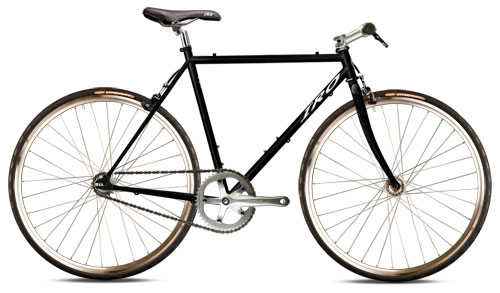

Phoenix Singlespeed Build-A-Bike w/ Standard Wheelset

Perfect commuter or town bike. Relaxed geometry and longer wheelbase. IRO heat treated Cro-Mo steel. Freewheel. 1 1/8 " threadless fork. Front and rear brakes. Brake cable stops on top tube, internal gear rear hub cable mounts on the bottom of downtube and chainstay. Mounts for two bottle cages. Rack and fender mounts. 120mm rear dropouts. Accepts up to 700 x 38c tires. 32c with fenders. Standard Wheelset.

Size	S/T C-C	T/T Length	H/T Angle	S/T Angle	H/T Length	Wheel Base	B/B Drop	C/S Length	Stand Over
50cm	45.5 cm	52 cm	72.0°	73.5°	8.5 cm	101 cm	6.5 cm	42.5	29.5”
52cm	47.5 cm	53 cm	72.0°	73.5°	8.5 cm	101.5 cm	6.5 cm	42.5	30”
54cm	49.5 cm	54 cm	72.0°	73.5°	9.2 cm	102 cm	6.5 cm	42.5	30.5”
56cm	51.5 cm	55 cm	72.0°	73.0°	10.5 cm	103 cm	6.5 cm	42.5	31.5”
58cm	53.5 cm	56 cm	72.0°	73.0°	12.5 cm	104 cm	6.5 cm	42.5	32”
60cm	55.5 cm	57 cm	72.0°	73.0°	14.5 cm	105 cm	6.5 cm	42.5	33”

Rear Dropout 120mm

Tire fork clearance pics here. These tires do not come with the phoenix but are used to show that tire size is relative to the manufacturer.
